DSYM

This is supposed to be an easy target to reverse. It comes with the description Try to add me and you will notme. It is two binaries, called getme and dunnoWhatIAm. They are both small, at around 10 KB.

I first see what I am dealing here by using the file command.

file getme
getme: ELF 64-bit LSB pie executable x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/l, for GNU/Linux 3.2.0, BuildID[sha1]=7e677f09cf2db7922096c6da0ad55a1e9a6895b8, stripped
file dunnoWhatIAm
dunnoWhatIAm: ELF 64-bit LSB pie executable x86-64, version 1 (SYSV), dynamically linked, interpreter *empty*, for GNU/Linux 3.2.0, BuildID[sha1]=7e677f09cf2db7922096c6da0ad55a1e9a6895b8, with debug_info, not stripped

So these are both 64-bit Linux executables, which is not terribly surprising. What is somewhat interesting is the second file. For the interpreter, it lists empty. The interpreter is used with dynamically linked executables to link in whatever dynamic libraries it depends on at launch. I don't yet know what it means if this is empty.

Next I examine what libraries these executables link with. I do that with the ldd tool.

ldd getme
        linux-vdso.so.1 (0x00007ffe3bea1000)
        linux-vdso.so.1 (0x00007ffe3bea1000)
        /lib64/ld-linux-x86-64.so.2 (0x00007f77704b5000)
ldd dunnoWhatIAm
        not a dynamic executable

Alright, so getme seems to be a standard executable. And dunnoWhatIAm is, well, I don't know yet.

I have setup a VM to run some tests in. I don't want to run untrusted binaries on my own machine. So next I just execute them and see what happens. I think the getme executable is going to say something like notme.

$ ./getme
$ ./dunnoWhatIAm
-bash: ./dunnoWhatIAm: cannot execute binary file: Exec format error

Trying to execute getme yields no output at all, and executing dunnoWhatIAm doesn't work at all. I want to take a closer look at these files, so I use the nm tool to take a peek at the defined symbols in both.

$ nm getme
$ nm dunnoWhatIAm
0000000000004038 B __bss_start
0000000000004038 b completed.7389
                 w __cxa_finalize@@GLIBC_2.2.5
0000000000004028 D __data_start
0000000000004028 W data_start
0000000000001090 t deregister_tm_clones
0000000000001100 t __do_global_dtors_aux
0000000000003df0 t __do_global_dtors_aux_fini_array_entry
0000000000004030 D __dso_handle
0000000000003df8 b _DYNAMIC
0000000000004038 D _edata
0000000000004040 B _end
00000000000012e4 T _fini
0000000000001140 t frame_dummy
0000000000003de8 t __frame_dummy_init_array_entry
00000000000021ac b __FRAME_END__
0000000000004000 b _GLOBAL_OFFSET_TABLE_
                 w __gmon_start__
0000000000002040 b __GNU_EH_FRAME_HDR
0000000000001000 T _init
0000000000003df0 t __init_array_end
0000000000003de8 t __init_array_start
0000000000002000 R _IO_stdin_used
                 w _ITM_deregisterTMCloneTable
                 w _ITM_registerTMCloneTable
00000000000012e0 T __libc_csu_fini
0000000000001270 T __libc_csu_init
                 U __libc_start_main@@GLIBC_2.2.5
0000000000001258 T main
0000000000001145 T notme
                 U printf@@GLIBC_2.2.5
                 U puts@@GLIBC_2.2.5
00000000000010c0 t register_tm_clones
0000000000001060 T _start
0000000000004038 D __TMC_END__

This looks a bit more promising. The dunnoWhatIAm file seems to contain some routines that look to be promising: a _start, a main, a notme. But I don't know how to run it, or what the other file, getme, is supposed to do.

I have the idea of trying to use dunnoWhatIAm as a library and trying to execute it like that. Or maybe trying to force loading it with ld-linux?

Not knowing exactly what to do, I decided to load these files into Hopper and see what they look like.

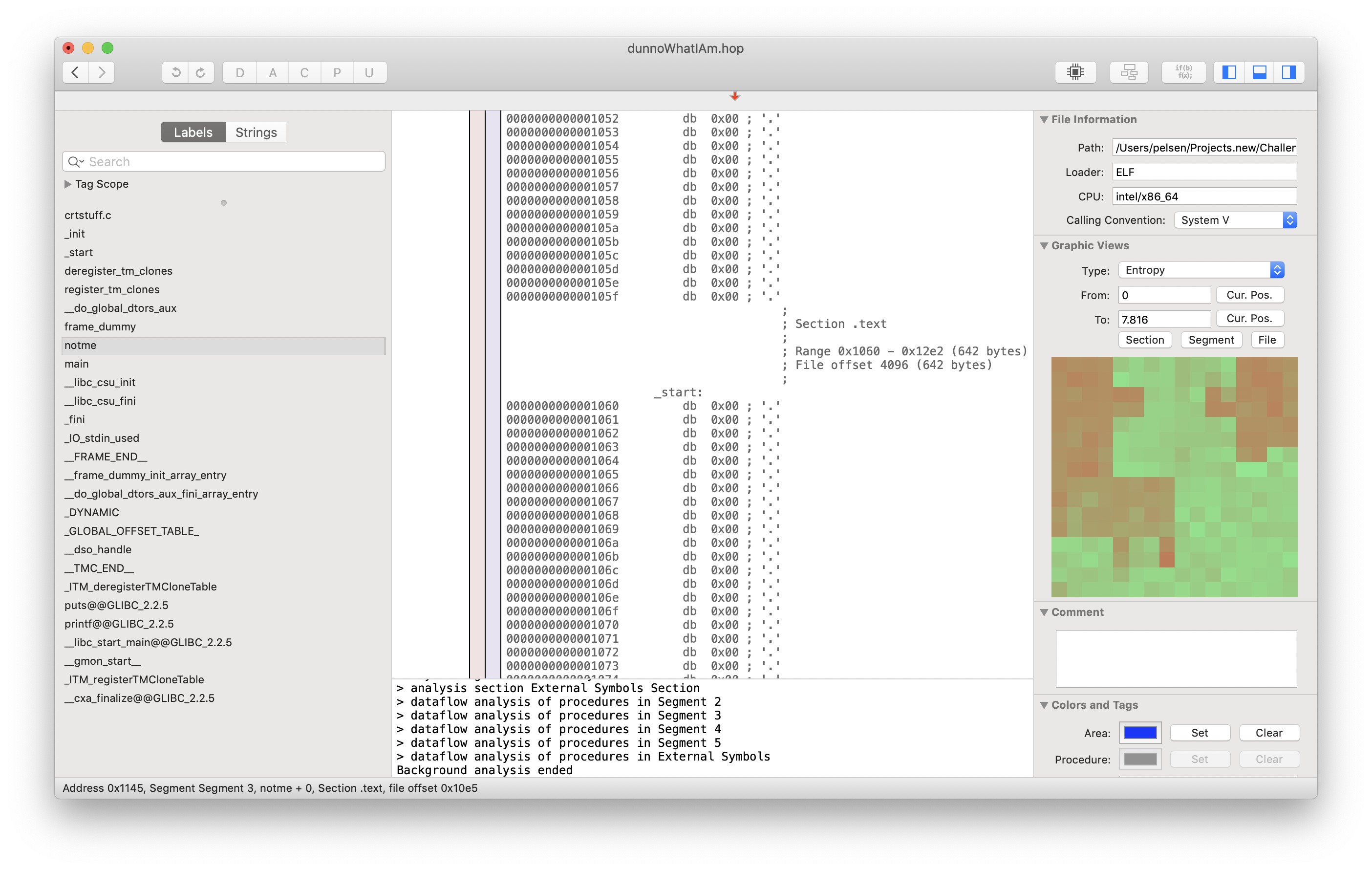

The first one, dunnoWhatIAm, looks very strange. It has what seems to be an ELF header and some sections, but they don't contain any data, only NULL bytes.

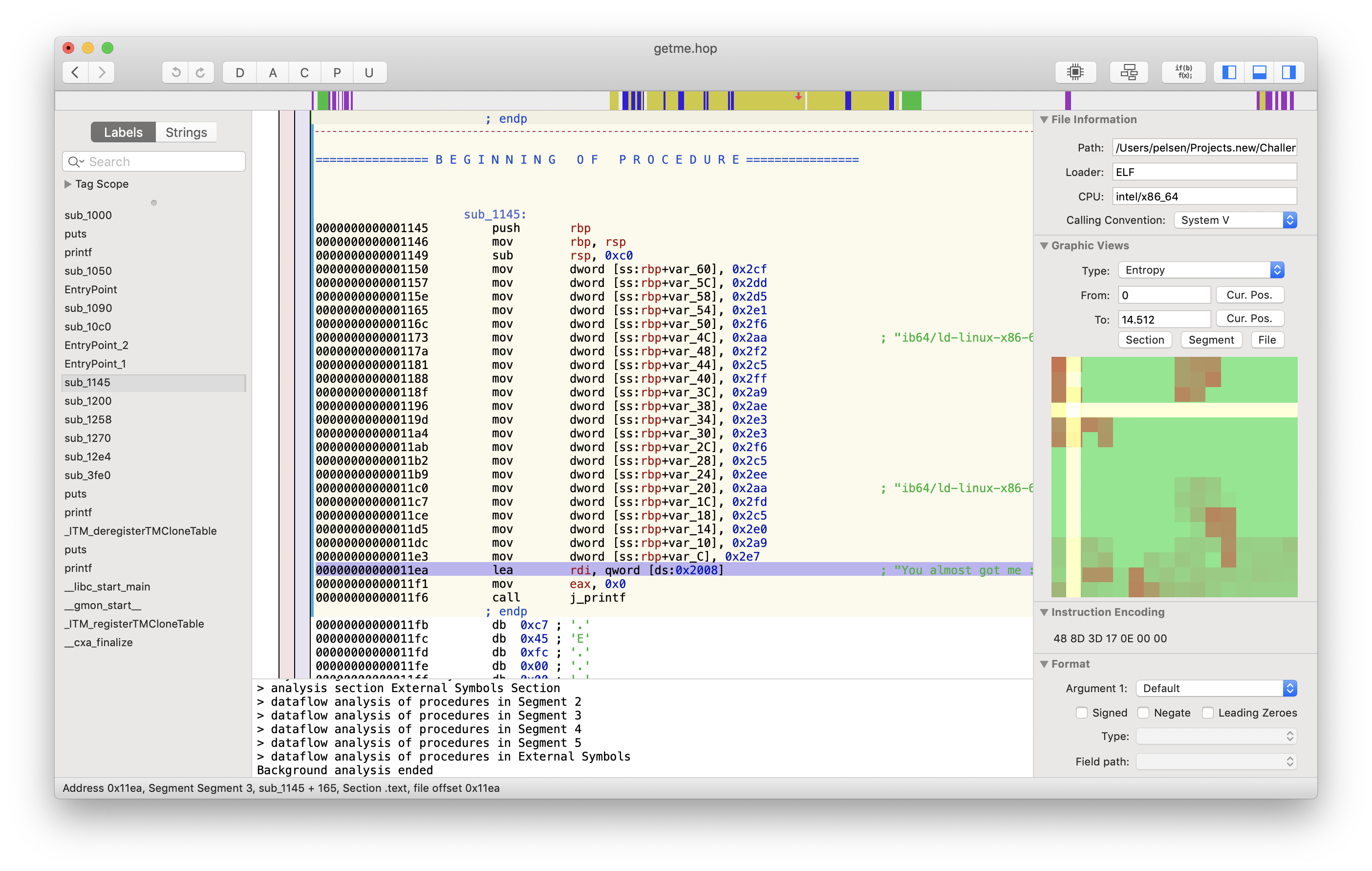

So next I took a look at the other one, again using Hopper. This time I found a lot more interesting things. There is actually code in here! And something that looks like it might be interesting.

This part seems quite interesting. There is a string in there that indicates that this is something interesting:

You almost got me :D Here is small price for you:

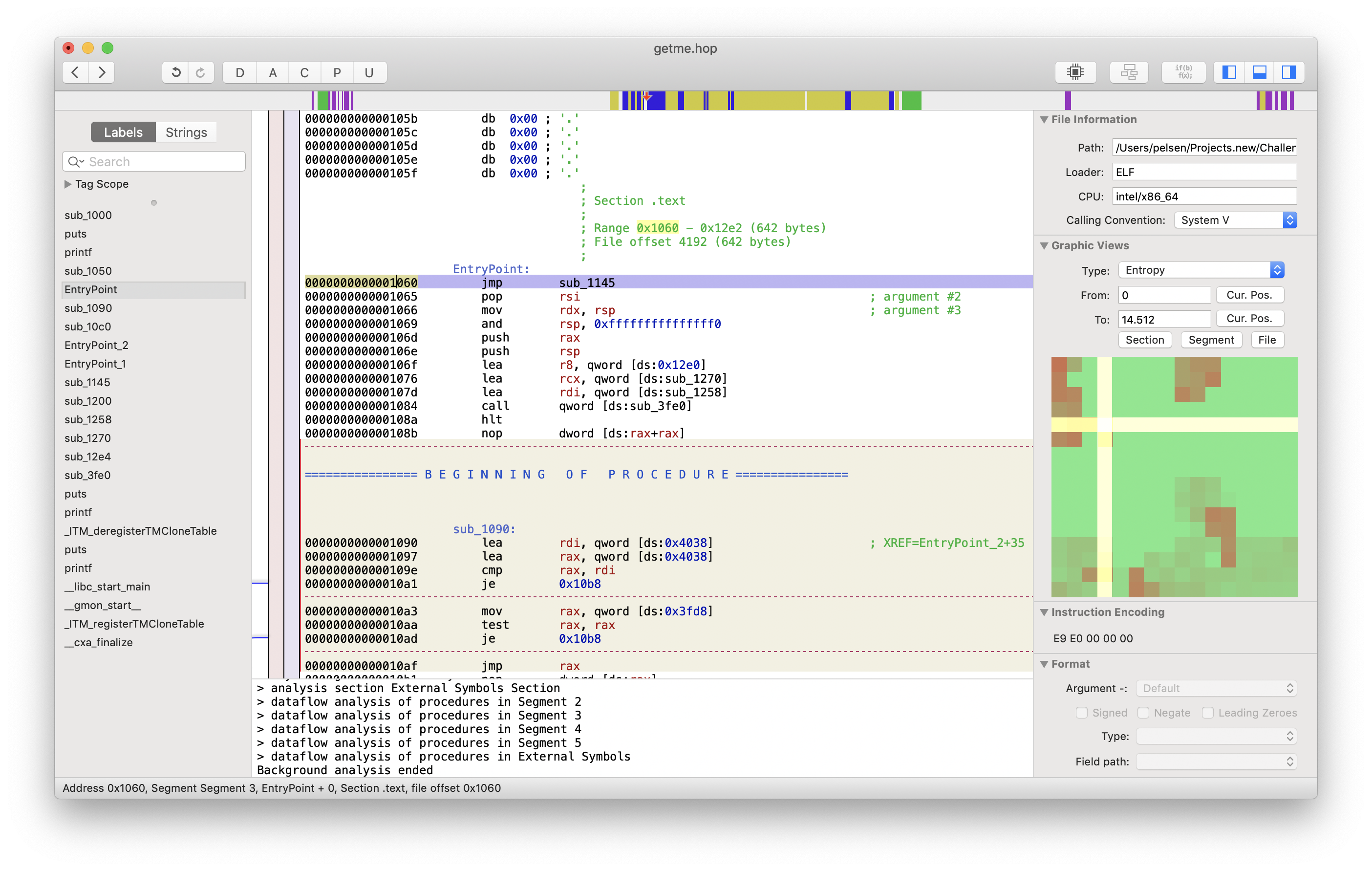

The only issue is, how do I manage to execute this to see what it really prints? I decide to patch the binary to jump to this code on startup and run it, to see what it does. I do that by patching in a jmp instruction to this routine, and then generating a new binary, getme_mod.

When I run this patched binary, it seems to give me what I want, where X is numbers and lowercase letters:

$ ./getme_mod
You almost got me :D
Here is a small price for you: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

Now this is something interesting. That small price, it looks surprisingly like hex-encoded data. So next I try to hex-decode it, using a small Ruby script that looks like this, saved as hexdecode.rb.

puts ARGV[0].scan(/../).map{|n| n.to_i(16).chr}.join

Running this with the target string gives me something that looks surprisingly like the kind of key I would be expecting.

ruby hexdecode.rb XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
UGO{xxx_xxxxxx_xxx_xx}

But this doesn't seem to be quite right. It is supposed to look like HTB{...}. Is this once more obfuscated? Looking at the characters, it seems evident that it might be rot13-encoded, like the login token. So next I write a little Ruby script to rot13-decode it, saved as rot13.rb.

require 'rot13'

puts Rot13.rotate(ARGV[0])

Running this finally seems to give me the token I need.

ruby rot13.rb UGO{xxx_xxxxxx_xxx_xx}
HTB{xxx_xxxxxx_xxx_xx}

Submitting this token was successful.

Addendum

After looking at what other people were doing online, I found out that the dunnoWhatIAm file is not entirely useless, but rather contains the debug info of the getme file. This is documented here.

This is evident by the fact that the dunnoWhatIAm file is listed in the .gnu_debuglink section of getme. I could have used this to load the debug symols into gdb.
